20. Components » BGP Connector

Wanguard sends and withdraws BGP advertisements (or routing updates) in these scenarios:

RTBH (Remote Triggered Black Hole) or Null-Routing
Wanguard Sensor announces DDoS’ed destinations to upstream providers via a special BGP community. This drops undesirable traffic before it reaches the protected network, effectively blackhole-routing attacked addresses.
Traffic Scrubbing / Clean Pipe
Wanguard Sensor re-routes attacked destinations to servers running Wanguard Filter, which blocks bad packets and re-injects the cleaned traffic into the network. Also known as sinkhole routing or side filtering.
BGP Flowspec
Wanguard Filter uses Flowspec for mitigation or traffic diversion directly on the edge router, supporting fine-grained matches (e.g., destination/source addresses, IP protocols, ports, etc.).
S/RTBH
Wanguard Filter can announce the attacking IP in BGP when S/RTBH is available.
Manual Null-Routing
Wanguard Console users can null-route a specific IP manually (e.g., for abuse or legal requirements).
Manual Traffic Diversion
Wanguard Console users may divert traffic to inspect packets or troubleshoot issues.

The following backends handle communication with BGP-enabled routers:

Quagga and FRR provide a mature, widely used BGP daemon resembling platforms like Cisco IOS. Recommended if the router doesn’t support BGP Flowspec.
ExaBGP is a tool typically used outside the data plane for path manipulation on mixed closed-source networks. It supports newer technologies like BGP Flowspec.
GoBGP is a BGP implementation written in the Go language. Faster and easier to use than ExaBGP, but lacks some features (e.g., flowspec redirect ip).
The BGP Connector is a frontend to a configured backend. Specifically, a connector using GoBGP is called a GoBGP Connector, one using ExaBGP is called an ExaBGP Connector, and one using Quagga or FRR is called a Quagga Connector.

To add a BGP Connector, click the [+] button from the title bar of the Configuration » Components panel. To modify an existing BGP Connector, go to Configuration » Components and click its name.

20.1. GoBGP Connector

Before you add a GoBGP Connector, ensure you have a fully functional GoBGP installation. If not, see the GoBGP installation section. You can run a single GoBGP instance along with multiple GoBGP Connectors, which is handy for sending announcements with different parameters (such as multiple communities).

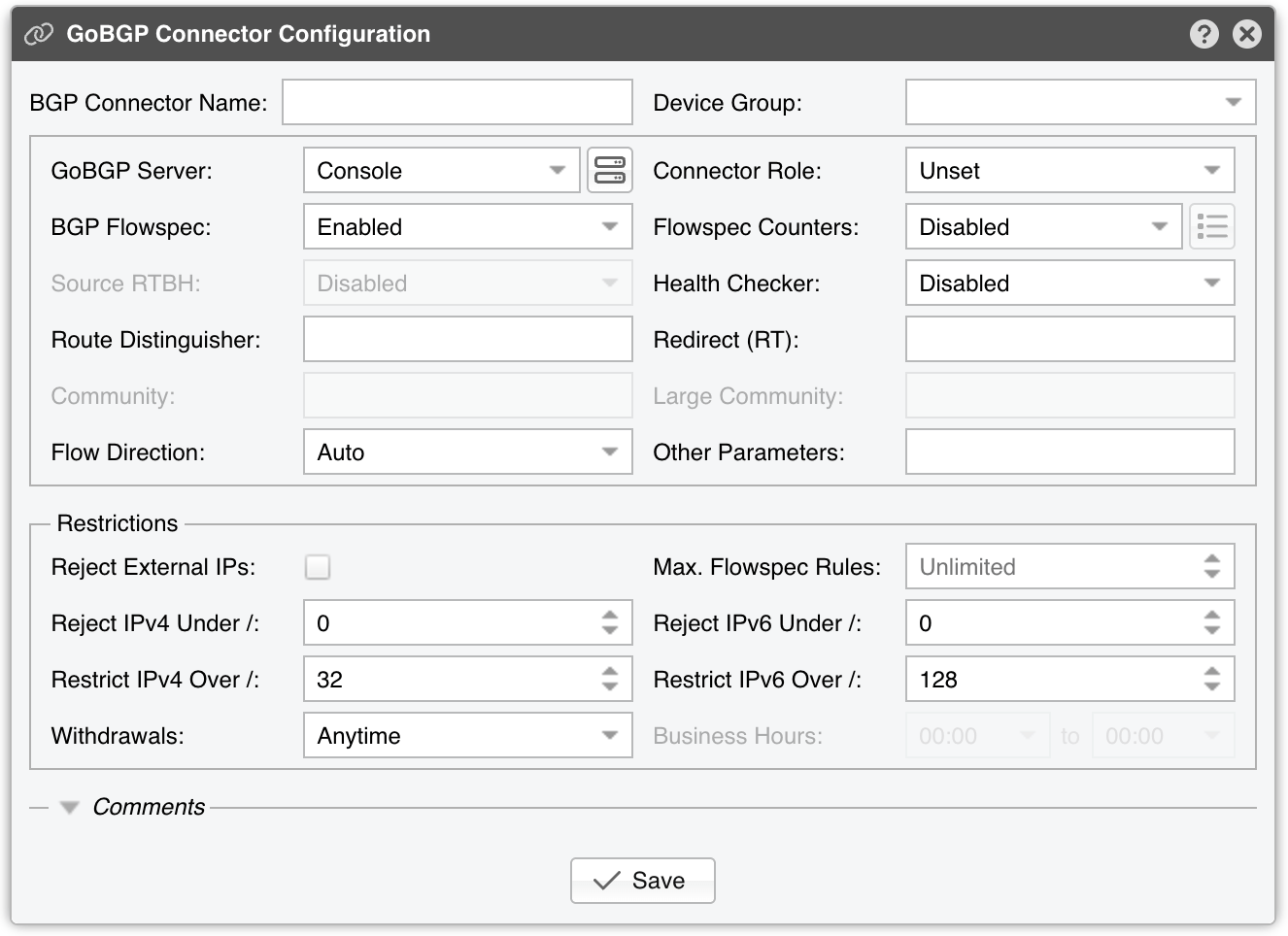

GOBGP_CONFIGURATION8.01_png

GoBGP Connector Configuration parameters:

BGP Connector Name – A short label or description for the GoBGP Connector
Device Group – (Optional) A label for organizing connectors, such as by location or characteristics, or to permit role-based access
GoBGP Server – Choose the server on which GoBGP is running
Connector Role – Select the appropriate role to affect the Actions shown in the New Flowspec Rule window and to prioritize announcements when different BGP Connectors have overlapping announcements. This avoids mitigation announcements being overwritten by diversion announcements
Mitigation – Choose if this Connector handles null-routing or traffic filtering
Diversion – Choose if this Connector manages traffic diversion
BGP Flowspec – Enable this option if the router supports BGP Flowspec. If Flowspec is unsupported, consider using a Quagga Connector for standard route announcements
Flowspec Counters – Because no vendor-neutral standard exists for reporting packet/byte drops in Flowspec, functionality is limited to two options:
Disabled – The counters matched by Flowspec rules are not visible in Wanguard

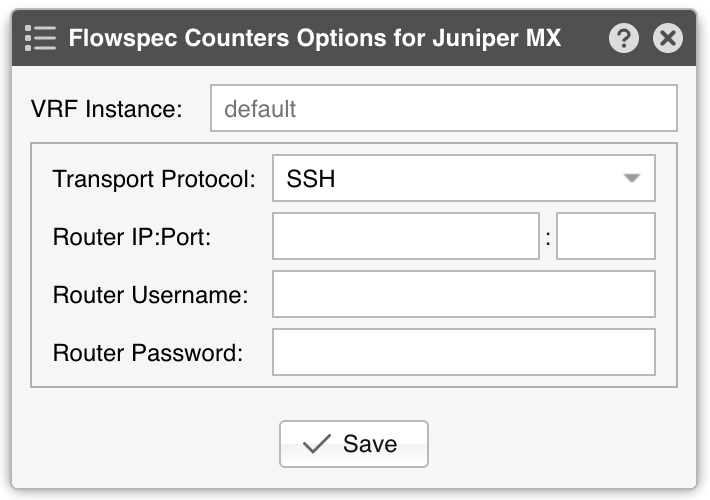

Juniper MX – Wanguard uses SSH to connect to a Juniper MX router with the credentials specified under the options button (to the right). Every few seconds, the software runs the command “show firewall filter __flowspec_default_inet__”. It parses the output and matches counters to known rules
EXABGP_CONNECTOR_FLOWSPEC_8.2
Source RTBH – Enable this option if the BGP Connector handles Source RTBH (not to be confused with the more common Destination RTBH). Very few networks support this feature
Health Checker – When enabled, the BGP peers’ status is checked every minute. If a peer goes down, Wanguard logs a warning in the event log. You can view the peers’ status in Reports » Devices » Overview
Community – (Optional) BGP community or list of communities appended to each announcement
Large Community – (Optional) BGP large community or list of large communities appended to each announcement
Redirect (IP/VRF) – (Optional) parameter for diversion; can be an IP, a VRF, or “self”
Route Distinguisher – (Optional) An ‘rd’ value included with each announcement
Flow Direction – Swaps the source and destination IPs in each announcement. Set to Inverted only in symmetric routing scenarios
Other Parameters – Additional parameters passed with each announcement in gobgp format
Reject External IPs – When checked, it permits only announcements for the prefixes defined in an IP Zone
Max. Flowspec Rules – Because routers have a limited capacity for Flowspec rules, enter your router’s max limit here to avoid overflowing its Flowspec table. Known limits published by vendors: Alcatel-Lucent 512, Cisco (ASR9k) 3000, Juniper 8000
Reject IPv4 under / – Restricts sending IPv4 prefixes whose CIDR mask is less than the configured value. For example, 32 allows only host prefixes, blocking any subnets. Enter 0 to disable this feature
Reject IPv6 under / – Restricts sending IPv6 prefixes whose CIDR mask is less than the configured value. For example, 128 rejects any prefix that isn’t a host, blocking manual/automatic subnet announcements. Enter 0 to disable this feature
Restrict IPv4 over / – Specifies the maximum IPv4 CIDR mask your DDoS mitigation providers will accept. For example, if your peers only allow /24, set this to 24. Enter 32 to disable the feature (permit host routes)
Restrict IPv6 over / – Specifies the maximum IPv6 CIDR mask your DDoS mitigation providers will accept. For example, if your peers allow up to /48, set it to 48. Enter 128 to disable the feature (permit host routes)
Withdrawals – You can postpone the withdrawal of announcements by the time interval defined in the Business Hours field
Comments – Use this field to record any notes about the GoBGP Connector. These are internal-only and won’t appear anywhere else

To enable the GoBGP Connector, click the on/off switch next to its name in the Configuration » Components panel.

Once you enable the GoBGP Connector, Wanguard Sensor and Wanguard Filter can use it when triggered by a Response. For automatic Flowspec-based attack mitigation, configure Wanguard Filter and add the “Announce a BGP routing update with Flowspec or S/RTBH” action in the “When a filtering rule is detected” panel of the Response.

Flowspec announcements can be issued by Console users via Reports » Tools » Routing » [Add Flowspec Rule], or via the REST API from any scripting language.

All BGP routing updates are logged in Reports » Tools » Routing » BGP Announcement Archive. If you encounter errors, check the BGP Connector Troubleshooting steps.

20.1.1. GoBGP Installation

Wanguard uses the GoBGP Connector to communicate with gobgpd (as described above). Detailed configuration of gobgp.conf is beyond this documentation’s scope. Refer to the Network Integration Guideline for insights on different deployment scenarios and router configurations.

Installation steps differ by Linux distribution:

Install and enable GoBGP from your Linux distribution’s repository:

[root@localhost ~]# apt install gobgpd

Create the config file in /etc/gobgpd.conf. Example for a Flowspec-enabled router:

[global.config]
        as = 65001
        router-id = "192.168.1.1"

[[neighbors]]
        [neighbors.config]
                neighbor-address = "192.168.1.2"
                peer-as = 65001

        [[neighbors.afi-safis]]
                [neighbors.afi-safis.config]
                        afi-safi-name = "ipv4-flowspec"
        [[neighbors.afi-safis]]
                [neighbors.afi-safis.config]
                        afi-safi-name = "ipv6-flowspec"
  [[neighbors.afi-safis]]
    [neighbors.afi-safis.config]
      afi-safi-name = "ipv4-unicast"
  [[neighbors.afi-safis]]
    [neighbors.afi-safis.config]
      afi-safi-name = "ipv6-unicast"

Start and check the gobgpd service:

[root@localhost ~]# systemctl enable gobgpd
[root@localhost ~]# systemctl start gobgpd
[root@localhost ~]# systemctl status gobgpd

To check the status of the neighbors:

[root@localhost ~]# gobgp nei

To see the announced flowspec routes for IPv4:

[root@localhost ~]# gobgp global rib -a ipv4-flowspec

20.2. ExaBGP Connector

Before creating an ExaBGP Connector, ensure you have a fully functional exabgpd configuration. If not, see the ExaBGP installation section. You can run one exabgp instance along with multiple ExaBGP Connectors, which is helpful for sending announcements with varying parameters (e.g., different BGP communities).

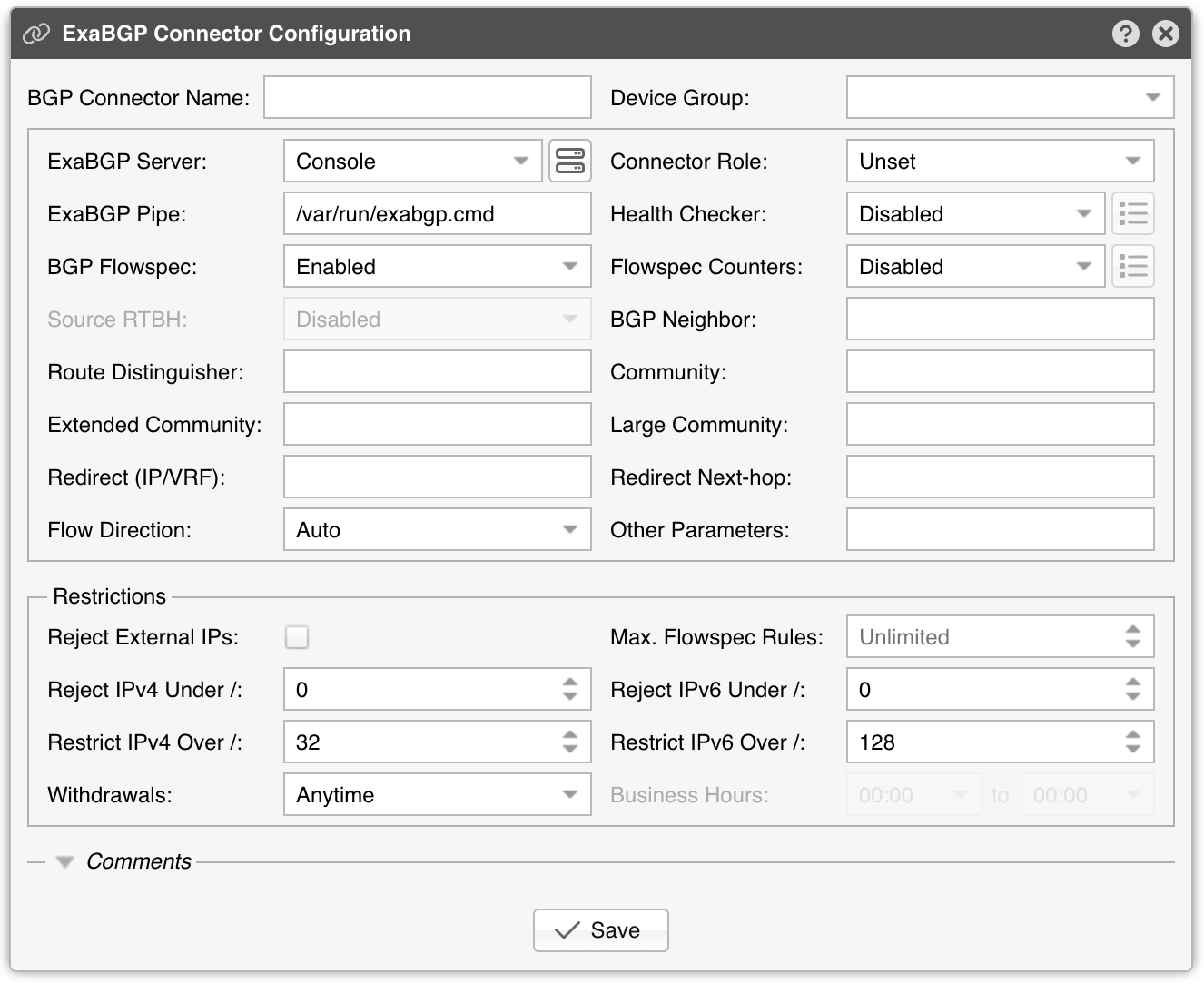

EXABGP_CONFIGURATION8.01_png

ExaBGP Connector Configuration parameters:

BGP Connector Name – A short label or description for the ExaBGP Connector
Device Group – (Optional) A label for organizing connectors, such as by location or characteristics, or to permit role-based access
ExaBGP Server – Choose the server on which GoBGP is running
Connector Role – Select the appropriate role to affect the Actions shown in the New Flowspec Rule window and to prioritize announcements when different BGP Connectors have overlapping announcements. This avoids mitigation announcements being overwritten by diversion announcements
Mitigation – Choose if this Connector handles null-routing or traffic filtering
Diversion – Choose if this Connector manages traffic diversion
ExaBGP Pipe – Specifies the path to the pipe file controlling ExaBGP. This file must be writable by the “andrisoft” system account
Health Checker – When enabled, the existence of the ExaBGP Pipe file is checked every minute. If the file doesn’t exist, a warning is written in the event log. The status of the BGP peers is checked too, and when a BGP peer is down, another warning is written in the event log. You can view the status of the BGP peers in Reports » Devices » Overview. This functionality needs a working “exabgpcli show neighbor summary” command, executed by the “andrisoft” user
BGP Flowspec – Enable if the router supports BGP Flowspec. If the router doesn’t support Flowspec, consider using a Quagga Connector instead
Flowspec Counters – Because no vendor-neutral standard exists for reporting packet/byte drops in Flowspec, functionality is limited to two options:
Disabled – The counters matched by Flowspec rules are not visible in Wanguard
Juniper MX – Wanguard uses SSH to connect to a Juniper MX router with the credentials specified under the options button (to the right). Every few seconds, the software runs the command “show firewall filter __flowspec_default_inet__”. It parses the output and matches counters to known rules
EXABGP_CONNECTOR_FLOWSPEC_8.2
Source RTBH – Enable this option if the BGP Connector handles Source RTBH (not to be confused with the more common Destination RTBH). Very few networks support this feature
BGP Neighbor – (Optional) The BGP neighbor to which the BGP Connector’s announcements are applied
Community – (Optional) BGP community or list of communities appended to each announcement
Extended Community – (Optional) BGP extended community or list of extended communities appended to each announcement
Redirect (IP/VRF) – (Optional) parameter for diversion; can be an IP, a VRF, or “self”
Route Distinguisher – (Optional) An ‘rd’ value included with each announcement
Flow Direction – Swaps the source and destination IPs in each announcement. Set to Inverted only in symmetric routing scenarios
Other Parameters – Additional parameters passed with each announcement in exabgp format, such local-preference or as-path
Reject External IPs – When checked, it permits only announcements for the prefixes defined in an IP Zone
Max. Flowspec Rules – Because routers have a limited capacity for Flowspec rules, enter your router’s max limit here to avoid overflowing its Flowspec table. Known limits published by vendors: Alcatel-Lucent 512, Cisco (ASR9k) 3000, Juniper 8000
Reject IPv4 under / – Restricts sending IPv4 prefixes whose CIDR mask is less than the configured value. For example, 32 allows only host prefixes, blocking any subnets. Enter 0 to disable this feature
Reject IPv6 under / – Restricts sending IPv6 prefixes whose CIDR mask is less than the configured value. For example, 128 rejects any prefix that isn’t a host, blocking manual/automatic subnet announcements. Enter 0 to disable this feature
Restrict IPv4 over / – Specifies the maximum IPv4 CIDR mask your DDoS mitigation providers will accept. For example, if your peers only allow /24, set this to 24. Enter 32 to disable the feature (permit host routes)
Restrict IPv6 over / – Specifies the maximum IPv6 CIDR mask your DDoS mitigation providers will accept. For example, if your peers allow up to /48, set it to 48. Enter 128 to disable the feature (permit host routes)
Withdrawals – You can postpone the withdrawal of announcements by the time interval defined in the Business Hours field
Comments – Use this field to record any notes about the ExaBGP Connector. These are internal-only and won’t appear anywhere else

To enable the ExaBGP Connector, click the on/off switch next to its name in the Configuration » Components panel.

Once you enable the ExaBGP Connector, Wanguard Sensor and Wanguard Filter can use it when triggered by a Response. For automatic Flowspec-based attack mitigation, configure Wanguard Filter and add the “Announce a BGP routing update with Flowspec or S/RTBH” action in the “When a filtering rule is detected” panel of the Response.

Flowspec announcements can be issued by Console users via Reports » Tools » Routing » [Add Flowspec Rule], or via the REST API from any scripting language.

All BGP routing updates are logged in Reports » Tools » Routing » BGP Announcement Archive. If you encounter errors, check the BGP Connector Troubleshooting steps.

20.2.1. ExaBGP Installation

Wanguard uses the ExaBGP Connector to communicate with exabgpd (as described above). Detailed configuration of exabgp.conf is beyond this document’s scope; see the Network Integration Guideline for deployment scenarios and router configuration requirements.

The installation process varies according to the Linux distribution and ExaBGP version:

Install and enable ExaBGP from the package repository:

[root@localhost ~]# apt install exabgp
[root@localhost ~]# systemctl enable exabgp

Create the exabgp config file in /etc/exabgp/exabgp.conf. Example:

neighbor 10.0.0.2 {
  router-id 10.0.0.1;
  local-address 10.0.0.1;
  local-as 65000;
  peer-as 65000;
}

Start and check the exabgp service:

[root@localhost ~]# systemctl start exabgp
[root@localhost ~]# systemctl status exabgp

Enter /run/exabgp/exabgp.in in the ExaBGP Pipe field from the ExaBGP Connector.

20.3. Quagga Connector

Before creating a Quagga Connector, ensure you have a fully functional bgpd configuration. If not, see the Quagga / FRR installation section. You can run one bgpd instance along with multiple Quagga Connectors, which is helpful for sending announcements with varying parameters (e.g., different BGP communities, different route-maps).

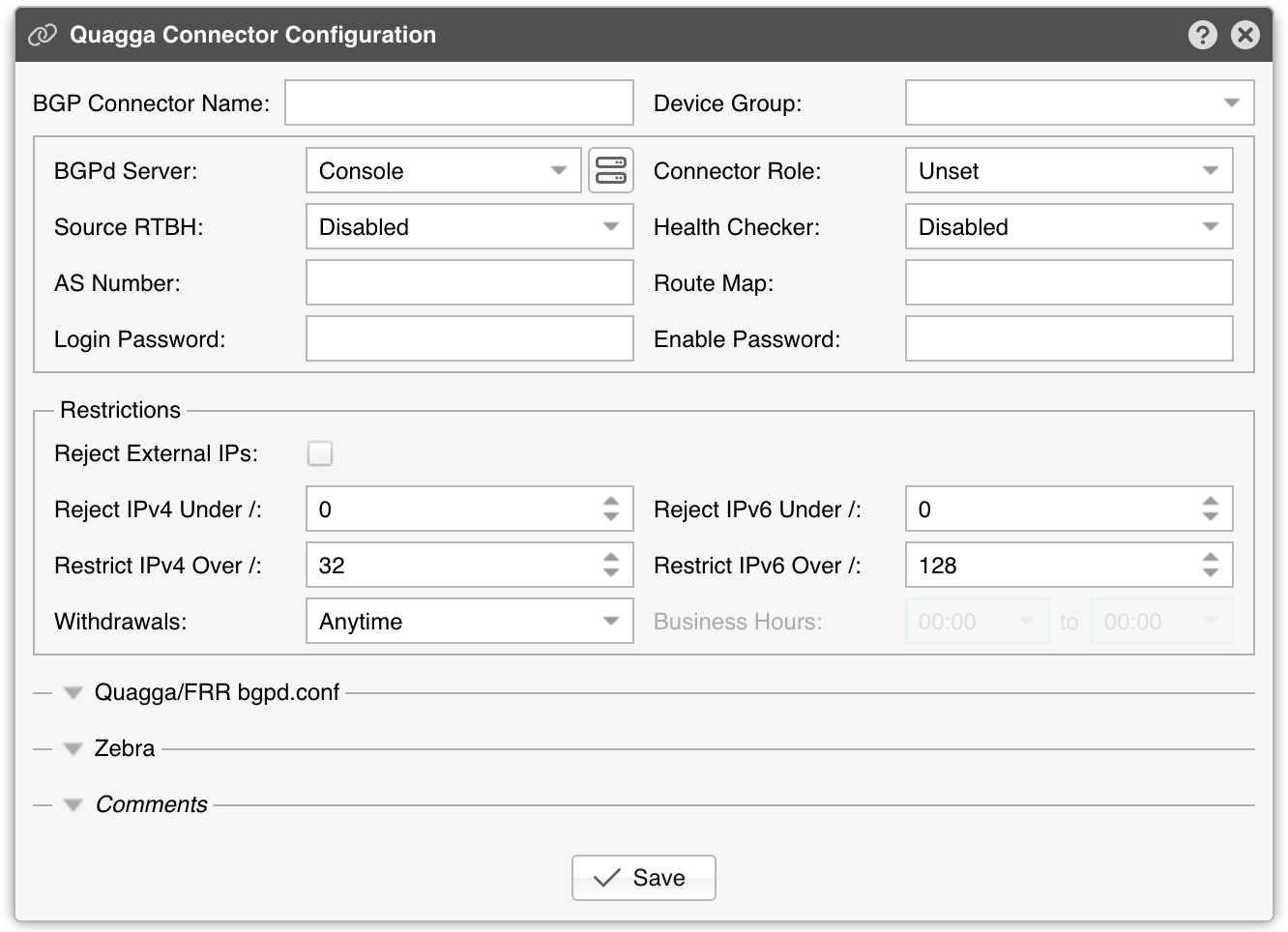

QUAGGA_CONFIGURATION8.01_png

Quagga Connector Configuration parameters:

BGP Connector Name – A short label or description for the Quagga Connector
Device Group – (Optional) A label for organizing connectors, such as by location or characteristics, or to permit role-based access
BGPd Server – Choose the server on which Quagga bgpd or FRR bgpd is running
Connector Role – Select the appropriate role to affect the Actions shown in the New Flowspec Rule window and to prioritize announcements when different BGP Connectors have overlapping announcements. This avoids mitigation announcements being overwritten by diversion announcements
Mitigation – Choose if this Connector handles null-routing or traffic filtering
Diversion – Choose if this Connector manages traffic diversion
Source RTBH – Enable this option if the BGP Connector handles Source RTBH (not to be confused with the more common Destination RTBH). Very few networks support this feature
Health Checker – When enabled, the BGP peers’ status is checked every minute. If a peer goes down, Wanguard logs a warning in the event log. You can view the peers’ status in Reports » Devices » Overview
AS Number – Enter the same AS number used in the bgpd configuration
Route Map – (Optional) A route-map that will be used for each announcement. This option is not mandatory but widely used to append communities to the routing update. If you need to use multiple route maps, define multiple Quagga Connectors, one for each route map
AS View – (Optional) If multiple AS views are defined in the bgpd configuration, enter the AS view you want to use for this Quagga Connector. This option is not mandatory and is rarely used
Login Password – Password needed to connect to the bgpd daemon
Enable Password – Configuration mode password of the bgpd daemon
Reject External IPs – When checked, it permits only announcements for the prefixes defined in an IP Zone
Reject IPv4 under / – Restricts sending IPv4 prefixes whose CIDR mask is less than the configured value. For example, 32 allows only host prefixes, blocking any subnets. Enter 0 to disable this feature
Reject IPv6 under / – Restricts sending IPv6 prefixes whose CIDR mask is less than the configured value. For example, 128 rejects any prefix that isn’t a host, blocking manual/automatic subnet announcements. Enter 0 to disable this feature
Restrict IPv4 over / – Specifies the maximum IPv4 CIDR mask your DDoS mitigation providers will accept. For example, if your peers only allow /24, set this to 24. Enter 32 to disable the feature (permit host routes)
Restrict IPv6 over / – Specifies the maximum IPv6 CIDR mask your DDoS mitigation providers will accept. For example, if your peers allow up to /48, set it to 48. Enter 128 to disable the feature (permit host routes)
Quagga/FRR bgpd.conf – The content of the bgpd.conf file can be viewed and changed from the CLI or the user interface. The file’s location is determined by the Linux Distribution parameter from Configuration » Servers. If you replaced the default daemon that came with the distribution, edit the file and restart bgpd only from CLI. The bgpd.conf file uses a format very similar to the Cisco IOS configuration format. Quagga’s documentation covers the configuration options
QUAGGA_CONNECTOR_BGPD_8.2
Zebra Local Black Hole – Check if you need the local black hole feature provided by the Zebra daemon. This rarely-used feature is useful only for inline servers
Zebra Login & Enable Password – Credentials required to connect to the zebra daemon
Comments – Use this field to record any notes about the Quagga Connector. These are internal-only and won’t appear anywhere else

To enable the Quagga Connector, click the small on/off switch button displayed next to its name in the Configuration » Components panel.

After the Quagga Connector is enabled, it can be used by Wanguard Sensor when a Response activates it.

Wanguard Console users can send black hole or diversion announcements via the Quagga Connector in Reports » Tools » Routing » [Create Blackhole] or [Divert Traffic]. Console users can also use the REST API to send BGP announcements from any scripting language.

20.3.1. Quagga / FRR Installation

Wanguard sends and withdraws BGP announcements via the bgpd daemon provided by Quagga or FRR. The installation instructions are distribution-specific:

Install FRR, then edit /etc/frr/daemons. Change bgpd=no to bgpd=yes and remove the string “-A 127.0.0.1” from the bgpd_options line.

[root@localhost ~]# apt install frr
[root@localhost ~]# nano /etc/frr/daemons

To be able to start the bgpd service, create a basic configuration file. Setting a password for the bgpd daemon is usually enough to get it started. Replace “bgppass” with your own password.

[root@localhost ~]# echo 'password bgppass' > /etc/frr/bgpd.conf
[root@localhost ~]# echo 'enable password bgppass' >> /etc/frr/bgpd.conf
[root@localhost ~]# chown frr /etc/frr/bgpd.conf
[root@localhost ~]# mv /etc/frr/frr.conf /etc/frr/frr.conf_bak
[root@localhost ~]# systemctl enable frr
[root@localhost ~]# systemctl restart frr

Connect to the bgp daemon with telnet on localhost port 2605 (default bgpd port) and enter the previously-defined password (“bgppass”) when requested.

[root@localhost ~]# telnet 127.0.0.1 2605
localhost> enable
localhost# config terminal
localhost(config)#

Configure bgpd using the commands shown in the following example after adapting them to your own network. Please note that you can use the prefix-list, route-map, or distribute-list method for filtering outgoing routing information. To have a uniform approach, the following example uses route-maps. Optionally, BGP authentication can be configured to increase security and avoid any illegal BGP announcement which may lead to a security breach.

localhost(config)# router bgp <Wanguard-Filter-AS-number>
localhost(config-router)# bgp router-id <Wanguard-Filter-IP-address>
localhost(config-router)# neighbor <Router-IP-address> remote-as <Router-AS-number>
localhost(config-router)# neighbor <Router-IP-address> description <description>
localhost(config-router)# neighbor <Router-IP-address> password <BGP MD5 password>
localhost(config-router)# neighbor <Router-IP-address> route-map Wanguard-Filter-in in
localhost(config-router)# neighbor <Router-IP-address> route-map Wanguard-Filter-out out
localhost(config-router)# no bgp network import-check
localhost(config-router)# exit
localhost(config)# route-map Wanguard-Filter-in deny 10
localhost(config-route-map)# exit
localhost(config)# route-map Wanguard-Filter-out permit 10
localhost(config-route-map)# set community no-advertise <Wanguard-Filter-community>
localhost(config-route-map)# exit
localhost(config)# write
localhost(config)# exit

To display the bgpd configuration, enter the show running-config command from the “enable” command level. In the following example, the router’s AS number is 1000, and the BGPd AS number is 65000.

The following partial sample output is displayed:

localhost# show running-config
... skipped ...
router bgp 65000
bgp router-id 192.168.1.100
no bgp network import-check
neighbor 192.168.1.1 remote-as 1000
neighbor 192.168.1.1 description divert-from router
neighbor 192.168.1.1 soft-reconfiguration inbound
neighbor 192.168.1.1 route-map Wanguard-Filter-in in
neighbor 192.168.1.1 route-map Wanguard-Filter-out out
!
route-map Wanguard-Filter-in deny 10
!
route-map Wanguard-Filter-out permit 10
set community no-advertise
!
line vty
... skipped ...

20.3.2. IPv4 and IPv6 in Quagga / FRR

The bgpd.conf excerpt below illustrates an example of IPv4 and IPv6 RTBH (Remotely Triggered Black Hole). Two communities were used. Community 667 is for the own infrastructure to avoid on RTBH our self. It is not installed on the RIB and only sent to upstreams.

router bgp 65002
 bgp router-id 198.51.100.220
 no bgp default ipv4-unicast
 neighbor 198.51.100.77 remote-as 65000
 neighbor 198.51.100.77 description RouteReflector1
 neighbor 198.51.100.77 ebgp-multihop 10
 neighbor 198.51.100.77 activate
 neighbor 198.51.100.77 route-map RM-DENY in
 neighbor 198.51.100.77 route-map RM-IPV4-ADVERTISE-NULL out
 neighbor 198.51.100.88 remote-as 65000
 neighbor 198.51.100.88 description RouteReflector2
 neighbor 198.51.100.88 ebgp-multihop 10
 neighbor 198.51.100.88 activate
 neighbor 198.51.100.88 route-map RM-DENY in
 neighbor 198.51.100.88 route-map RM-IPV4-ADVERTISE-NULL out
 neighbor 2001:DB8::77 remote-as 65000
 neighbor 2001:DB8::77 description RouteReflector1
 neighbor 2001:DB8::77 ebgp-multihop 10
 neighbor 2001:DB8::77 override-capability
 neighbor 2001:DB8::88 remote-as 65000
 neighbor 2001:DB8::88 description RouteReflector2
 neighbor 2001:DB8::88 ebgp-multihop 10
!
 address-family ipv6
 neighbor 2001:DB8::77 activate
 neighbor 2001:DB8::77 soft-reconfiguration inbound
 neighbor 2001:DB8::77 route-map RM-DENY in
 neighbor 2001:DB8::77 route-map RM-IPV6-ADVERTISE-NULL out
 neighbor 2001:DB8::88 activate
 neighbor 2001:DB8::88 soft-reconfiguration inbound
 neighbor 2001:DB8::88 route-map RM-DENY in
 neighbor 2001:DB8::88 route-map RM-IPV6-ADVERTISE-NULL out
 exit-address-family
!
ip prefix-list PL-IPV4-ANY-AUTOMATIC-RTBH seq 5 permit 0.0.0.0/0 ge 32
ip prefix-list PL-IPV4-INFRA-AUTOMATIC-RTBH seq 5 permit 198.51.100.0/24 le 32
!
ipv6 prefix-list PL-IPV6-ANY-AUTOMATIC-RTBH seq 5 permit ::/0 ge 128
ipv6 prefix-list PL-IPV6-INFRA-AUTOMATIC-RTBH seq 5 permit 2001:DB8::/64 le 128
!
route-map RM-DENY deny 10
!
route-map RM-IPV4-ADVERTISE-NULL permit 10
 match ip address prefix-list PL-IPV4-INFRA-AUTOMATIC-RTBH
 set community 65000:667
 set ip next-hop 198.51.100.220
!
route-map RM-IPV4-ADVERTISE-NULL permit 20
 match ip address prefix-list PL-IPV4-ANY-AUTOMATIC-RTBH
 set community 65000:666
 set ip next-hop 198.51.100.220
!
route-map RM-IPV6-ADVERTISE-NULL permit 10
 match ipv6 address prefix-list PL-IPV6-INFRA-AUTOMATIC-RTBH
 set community 65000:667
 set ipv6 next-hop global 2001:DB8::220
!
route-map RM-IPV6-ADVERTISE-NULL permit 20
 match ipv6 address prefix-list PL-IPV6-ANY-AUTOMATIC-RTBH
 set community 65000:666
 set ipv6 next-hop global 2001:DB8::220
!

Debug commands (2001:DB8::666 and 198.51.100.66 are null routed):

quagga# show vers
Quagga 0.99.24.1 ().


quagga# sh ipv6 bgp summary
BGP router identifier 198.51.100.220, local AS number 65002
RIB entries 1, using 112 bytes of memory
Peers 4, using 18 KiB of memory

Neighbor        V         AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
2001:DB8::77    4 65000   18675   18683        0    0    0 01:08:19        0
2001:DB8::88    4 65000   18675   18691        0    0    0 00:23:48        0

Total number of neighbors 2

quagga# sh ipv6 bgp neighbors 2001:DB8::88 advertised-routes

   Network          Next Hop            Metric LocPrf Weight Path
*> 2001:DB8::666/128
                    2001:DB8::220
                                            0         32768 i

quagga# sh ip bgp summary
BGP router identifier 198.51.100.220, local AS number 65002
RIB entries 3, using 336 bytes of memory
Peers 4, using 18 KiB of memory

Neighbor        V         AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
198.51.100.77   4 65000   18672   18681        0    0    0 01w5d23h        0
198.51.100.88   4 65000   18671   18681        0    0    0 01w5d23h        0


quagga# sh ip bgp nei 198.51.100.88 advertised-routes

   Network          Next Hop            Metric LocPrf Weight Path
*> 198.51.100.66/32
                    198.51.100.220           0         32768 i

20.4. BGP Connector Troubleshooting

✔ Make sure that you have correctly configured the BGP Connector. Each configuration parameter is described in depth in this chapter
✔ Go to Help » Software Updates to make sure that you are running the latest version of the software
✔ Look for warnings and errors in Reports » Tools » Routing » BGP Connector Events. Some events contain additional information which is visible when clicking the [+] sign from the first column
✔ If the event log shows connection errors on port tcp/2605 then bgpd is not accessible via telnet on the IP listed in Configuration » Servers. By default, bgpd is bound to 127.0.0.1, which is why the string “-A 127.0.0.1” must be deleted from bgpd’s starting scripts
✔ If the event log shows connection errors on port tcp/2601 then Quagga Connector was configured with the Zebra Local Back Hole feature, although zebra is either not configured or not accessible from the Console server
✔ If the event log shows pattern timeout errors, then there is a mismatch between a parameter (password, AS number, route-map, AS view) defined in the Quagga Connector and the similar parameter from bgpd.conf
✔ If in Reports » Tools » Routing » Active BGP Announcements you see errors about “orphaned” announcements, check the following possible causes:
▪ If the anomaly was stopped forcefully by clicking [Batch Actions] » Expire in Reports » Tools » Anomalies
▪ If the Sensor that detected the anomaly is no longer running or if it was deleted
▪ If the WANsupervisor service was not running at the time of the withdrawal
▪ If there were connection issues between the Console server and the server running bgpd or exabgpd
▪ If bgpd or exabgpd were running, and in the case of exabgpd if the pipe file is accessible
✔ You can clear the failed announcements from Reports » Tools » Routing » Active BGP Announcements by clicking [Batch Actions] » Clear
